Product Overview:
◎More Reliable And Long Service Life: Safety And Reliability Are At The Heart Of Our Commitment. Pressure-Tested, Rugged And Wear-Resistant CF8 With A Smooth, Burr-Free Surface And A Service Life Of Up To 2,000 Cycles, This Product Is The Best Choice For Your Industrial Control.
◎Extremely Fast Response, Precise Control: With Its Astonishing 1-Second Response Time, This Control Valve Provides Unmatched Precision And Control For Your Industrial Needs. Whether It's Quick To Turn On Or Off, It's Easy To Handle And Make Sure Every Operation Is Done Correctly.
◎More Accurate: The Built-In High-Performance Brushless Motor Control Module Achieves Precise Positioning Through Frequency Speed Regulation, And Is Equipped With Internal Motor Overload Protection To Ensure Safety And Stability During Operation. Its High-Precision Position Control Function Can Be Set By Software To Achieve An Accuracy Of ±1%, Which Meets Your Strict Requirements For Precise Control.
◎Connection Diversity: This Product Has BSPP Or NPT Standard Threads, Which Can Be Easily Connected According To ISO5211 F03/F04/F05 Standards, And Can Adapt To The Effective Connection Needs In Most Scenarios. An Ideal Alternative To Solenoid Valves, It Automatically Shuts Off Power After Full Or Full Shutdown To Prevent Overheating, And Is Suitable For Secondary Valve Models In A Wide Range Of Projects, Demonstrating Its Superior Performance And Flexibility.
Product Detail:
◎ Valve Dimension: 1-1/4" 1-1/2" 2" BSPP or NPT Thread Available;
◎ Switching Time: 1 Sec. Per 90 Degree.
◎ Actuator Rated Torque: 20N.m;
◎ Recomand Install Below 15N.m Valvd Body;
◎ Rated Voltage: 24VAC/DC;

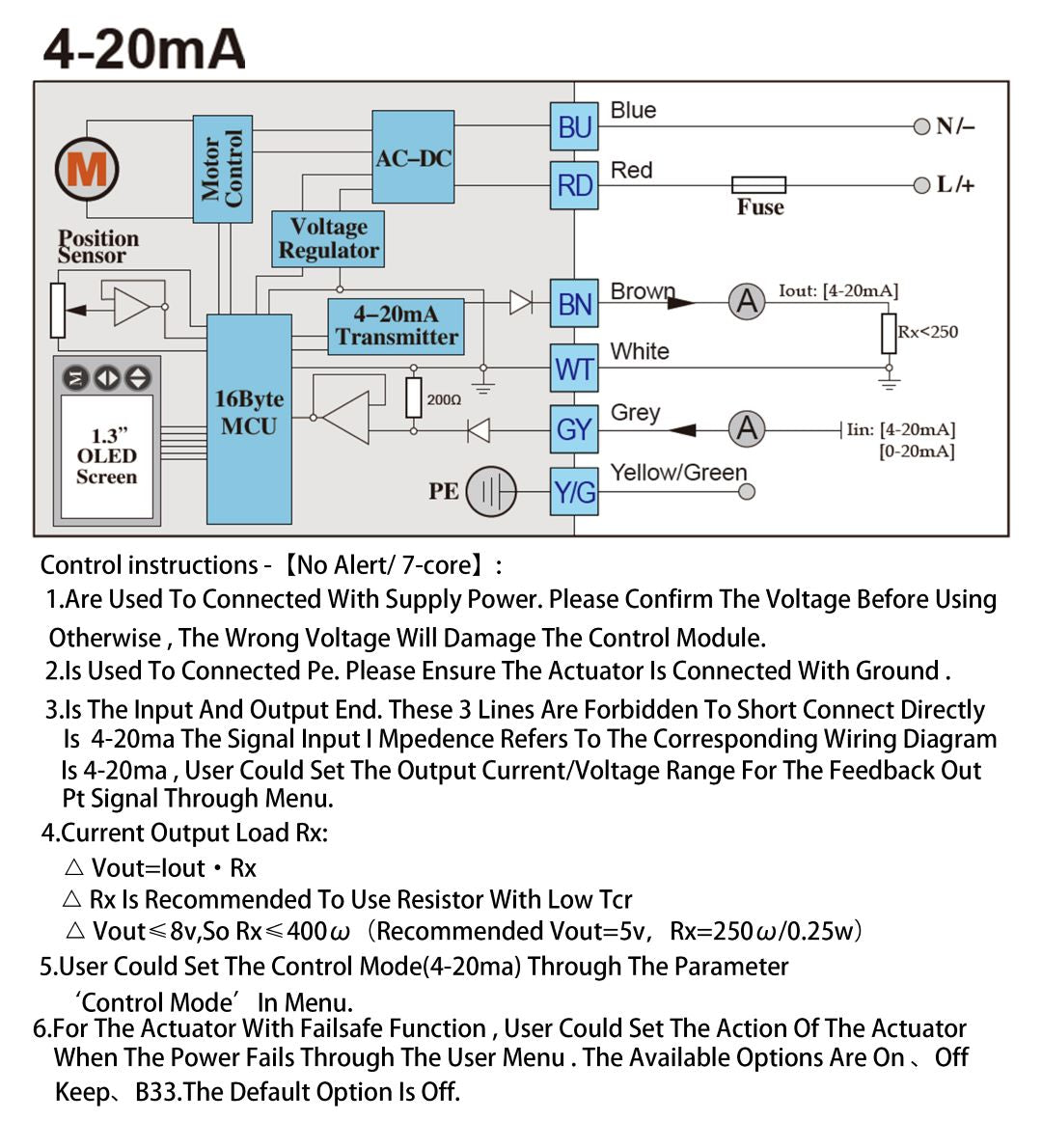

◎ Position Feedback: 4-20mA;
◎ Position Accuracy: ±1%(Set By Software);
◎ Adopted High-Performance Brushless Motor, Overload Protection of Internal Motor;
◎ Connection Standard: ISO5211 F03/F04/F05;
Electrical Data:
◎ Rated Voltage: AC/DC24V (AC18-28V; DC18-32V);
◎ Power Consumption: 85W @Running, 1w@Holding;
◎ Peak Current:950mA@5ms;
◎ Connecting Cable: 7*0.2mm² Cable, Voltage Withstand AC300V;
◎ Fuse: 2A;
Functional Data:
◎ Rated Torque: 20N.m;
◎ Angle Of Rotation: 90°±2°;
◎ Max Angle Of Rotation: 330°±5°;
◎ Manual Operation: ※ Matching Hexagon Wrench, Wsing At No Power;
◎ Running Time: About 10S(Per 90°);
◎ Continuous Running: Continuous Running;
◎ Sound Power Level: Max 50dB(A);
◎ Position Indicator: Mechanical and Screen;
Working Conditions:
◎ Electricity Safety Level: III Type (Safety Low Voltage);
◎ Inflaming Retarding Level: V0 UL94 Test Method;
◎ Enclosure: IP67 As Per En60529/GB4208-2008(All Directions); F Type Can Add Dehumidifying Heater ;
◎ Insulation Resistance: 100MΩ/500VDC ;
◎ Withstand Voltage: 500VAC, 1Min;
◎ Medium Temperature: ≤80° Can Install To Actuator Directly; ＞80° Need To Install Bracket or Heat Radiation Stand;
◎ Indoor or Outdoor; If Exposed To The Rain or Sunshine, Need To Install Protective Device For The Actuator;
◎ Not Explosion Proof Products, Do Not Use Them in Flammable and Explosive Environment;
◎ Ambient Temperature: -30℃ ~ 60℃;
