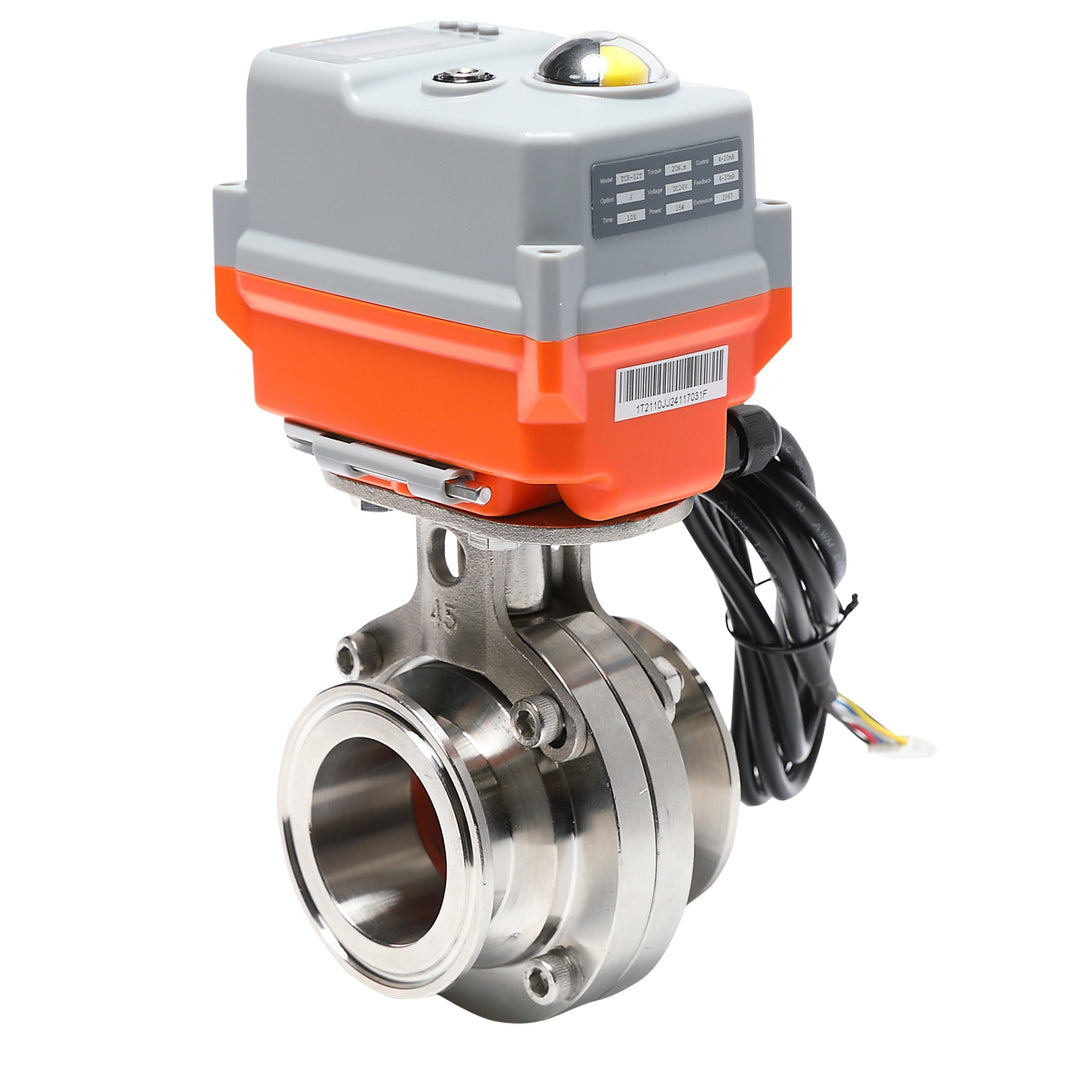

Product Overview:
◎ The Rated Voltage Of This Product Is 24VDC, With A Strong 20.N.M Torque To Control The Running Time Within 15 Seconds, And This Valve Can Be Adapted To Most Of The Valve Body Below 15N.M For Most Of The Use In Most Cases, Using 4-20ma Control Mode, It Can Be More Convenient To Control The Valve, And At The Same Time, The ADS Shell Is Used To Make It More Firm And Beautiful
◎ The Valve Body Of This Product Will Be Connected To The SO5211 Actuator According To F03/04/05 Standard, In Order To Facilitate The Connection And Adaptation Of Various Models；
◎ Install 2-Way Φ19-Φ76 1.5Mpa (217.5PSI) Stainless Steel Ball Valve Body, And The Valve Body Has Been Carefully Selected For Burr-Free Durability And Service Life Up To 20,000 Square Meters；
◎ Menu Can Report Real-Time Failure, Including Stuck Or Other Reasons Which Lead Actuator Fail To Realize Valve On/Off Integrally, And Output Failure Warning Signal;
◎ Built-In Motor Control Module, High-Performance Brushless Motor Frequency Speed Control Can Realize Accurate Positioning, Built-In Overload Protection Of Internal Motor;

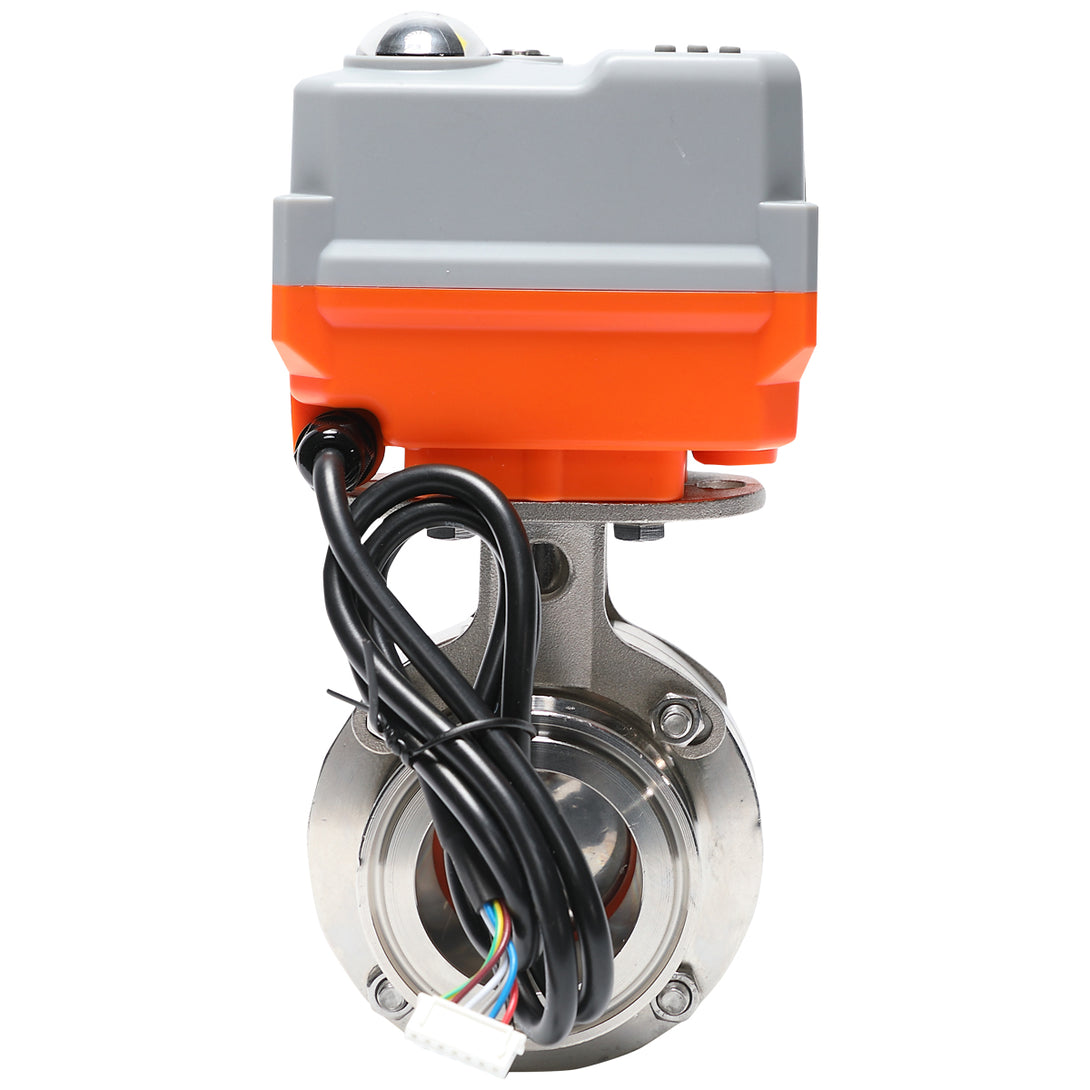

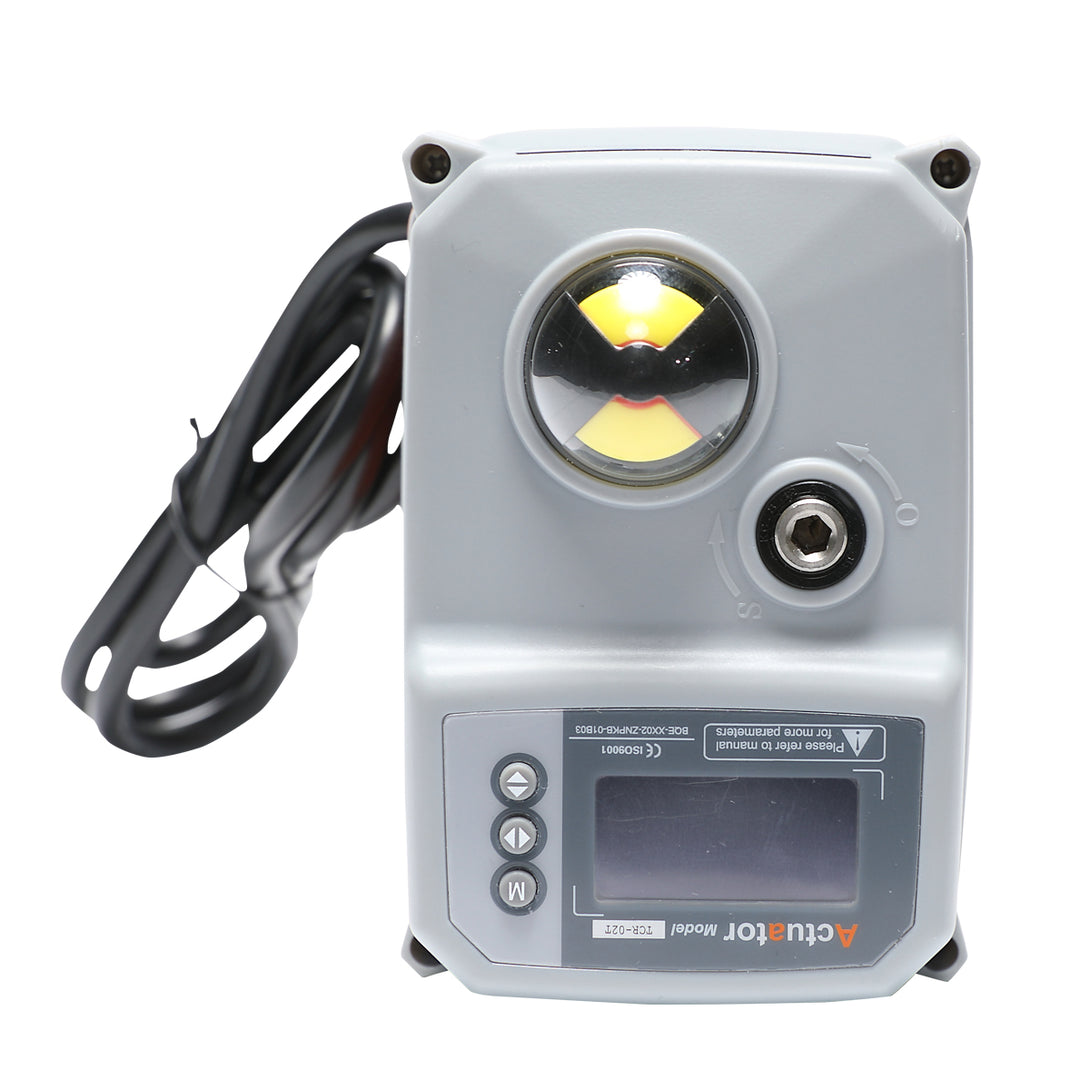

◎ 1.3" OLED Screen, No Visual Dead Angle, Highly Bright, Energy Saving And Eco-Friendly, Real Time To Show Valve Opening Angle And External Control Command Smart Ball Valve Actuator. Enter Sleeping State Automatically After About 5 Minutes, While It Could Prompt Location State And Its Control Command At Sleeping Time;
Product Detail:
◎ Valve Dimension: Φ19-Φ76
◎ Working Pressure: 217.5PSI(1.5Mpa);
◎ Actuator Rated Torque: 20N.m;
◎ Recomand Install Below 15N.m Valvd Body;
◎ Rated Voltage: 24VDC

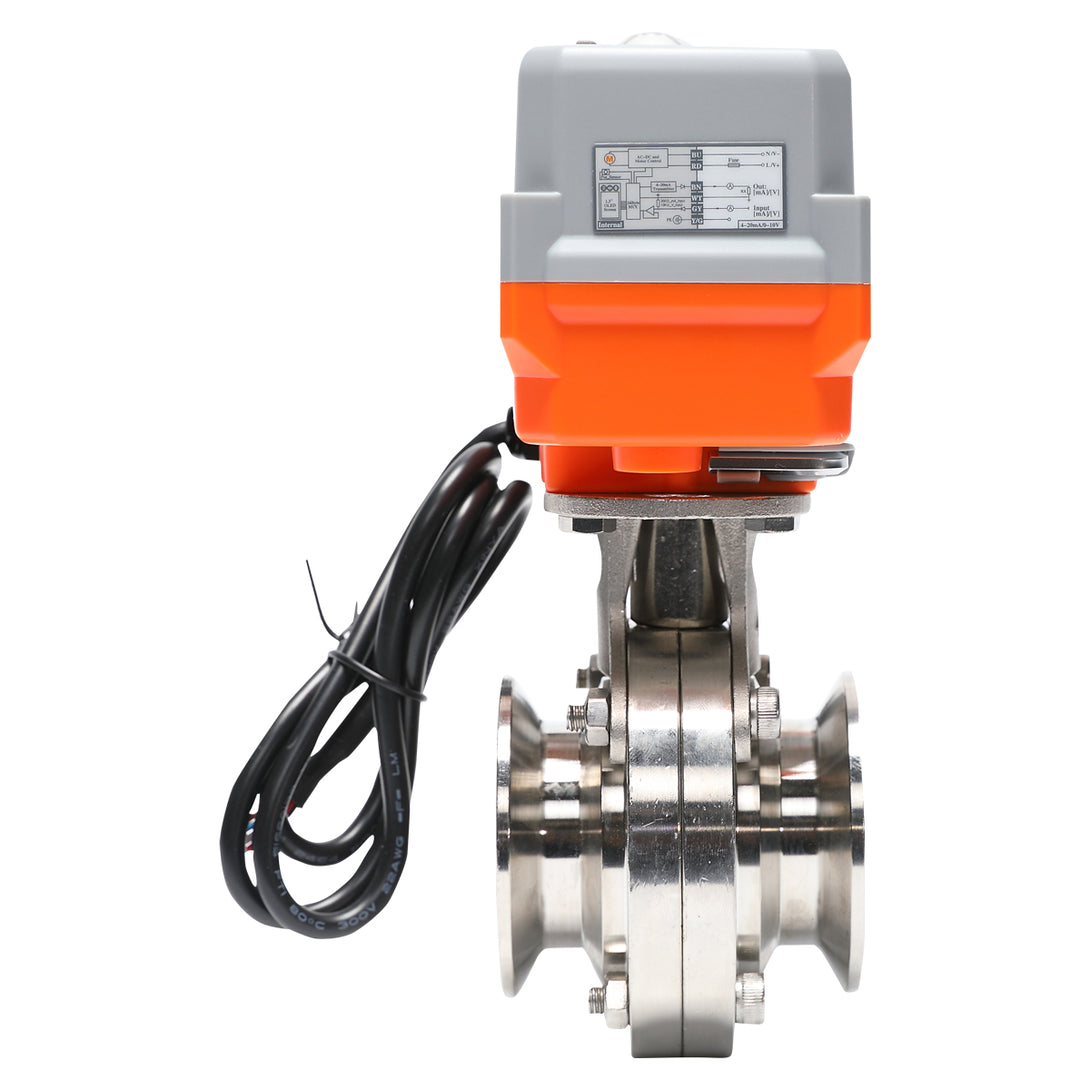

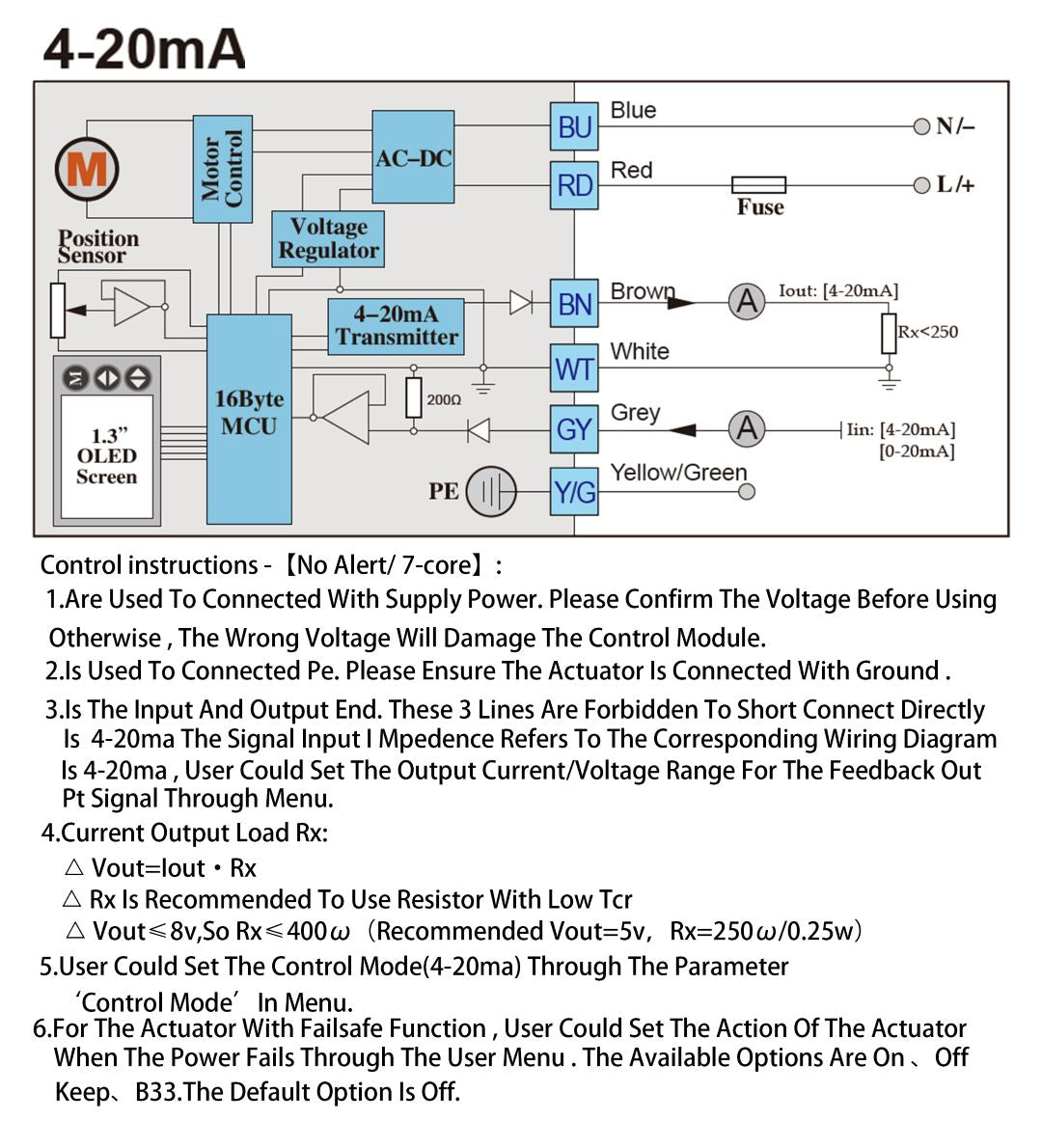

◎ Control Signal: 4-20MA
◎ Position Feedback: 4-20MA
◎ Position Accuracy: ±1%(Set By Software);
◎ Adopted High-Performance Brushless Motor, Overload Protection of Internal Motor;
◎ It can be used 20,000 times.*1;
◎ Connection Standard: ISO5211 F03/F04/F05;
Electrical Data:
◎ Rated Voltage: AC/DC24V (AC18-28V; DC18-32V);
◎ Power Consumption: 15W@Running, 0.5w@Holding;
◎ Peak Current: 950mA@5ms;
◎ Connecting Cable: 7*0.2mm² Cable, Voltage Withstand AC300V;
◎ Fuse: 2A;
Functional Data:
◎ Rated Torque: 20N.m;
◎ Angle Of Rotation: 90°±2°;
◎ Max Angle Of Rotation: 330°±5°;
◎ Manual Operation: ※ Matching Hexagon Wrench, Wsing At No Power;
◎ Running Time: About 10S(Per 90°);
◎ Continuous Running: Continuous Running;
◎ Sound Power Level: Max 50dB(A);
◎ Position Indicator: Mechanical and Screen;
Working Conditions:
◎ Electricity Safety Level: III Type (Safety Low Voltage);
◎ Inflaming Retarding Level: V0 UL94 Test Method;
◎ Enclosure: IP67 As Per En60529/GB4208-2008(All Directions); F Type Can Add Dehumidifying Heater ;
◎ Insulation Resistance: 100MΩ/500VDC ;
◎ Withstand Voltage: 500VAC, 1Min;
◎ Medium Temperature: ≤80° Can Install To Actuator Directly; ＞80° Need To Install Bracket or Heat Radiation Stand;
◎ Indoor or Outdoor; If Exposed To The Rain or Sunshine, Need To Install Protective Device For The Actuator;
◎ Not Explosion Proof Products, Do Not Use Them in Flammable and Explosive Environment;
◎ Ambient Temperature: -30℃ ~ 60℃;
◎ Non-operation Temperature: ≤-40℃ or ≥80℃;
