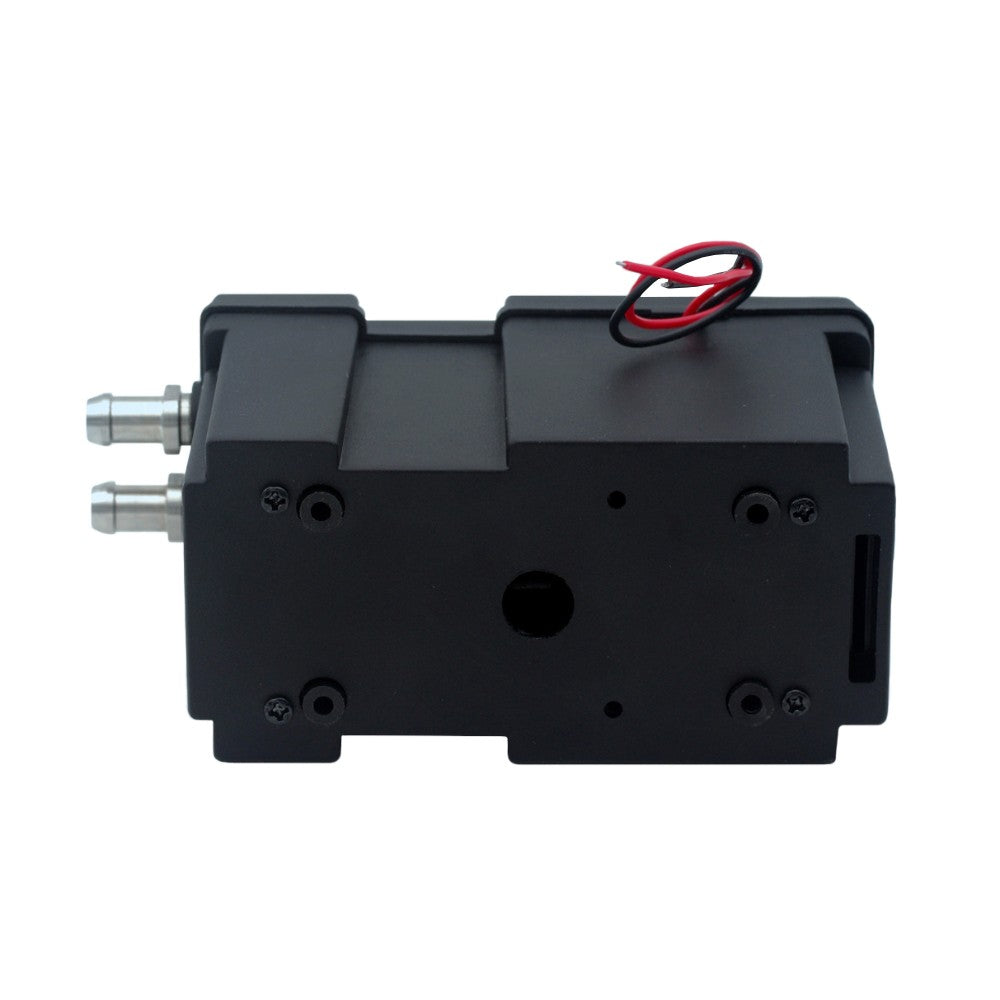

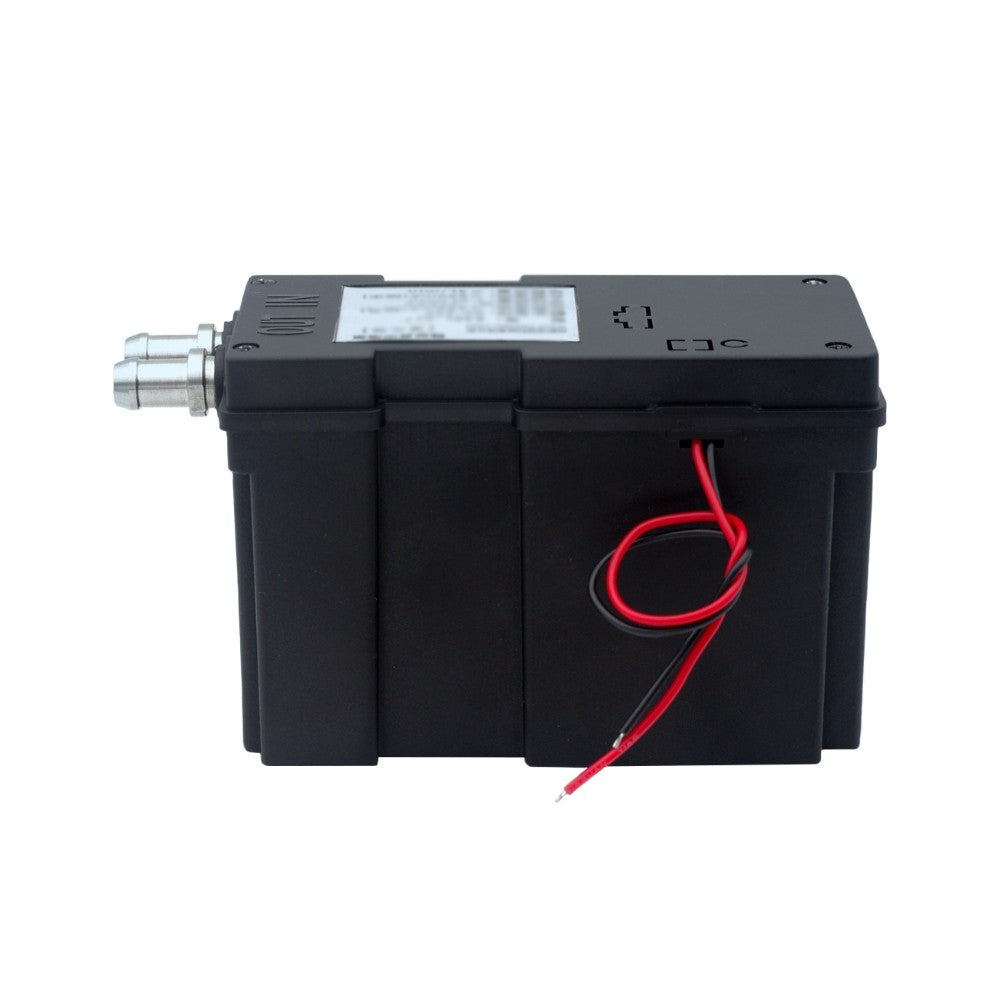

Micro DC Vacuum Pump 24V Diaphragm Pump S36L41J Industry/Experiment Equipment Water And Air Dual-use

Specification
◎  Voltage: 24VDC
◎  Ambient Temperature: 0 ~ 50℃
◎  Relative Humidity: ≤ 90%

Liquid Pump
◎  Load Current: ≤ 650mA
◎  Flow Rate Of The Max Pumping Height: 2 L/min
◎  Max Pumping Height: 3 mH2O
◎  Flow Rate Of The Max Drainage Height: 0.8 L/min
◎  Max Drainage Height: 11 mH2O
◎  Media Temperature: 5 ~ 50℃

Vacuum Pump
◎  Load Current: ≤ 520mA
◎  Average Flow: 2.2 L/min
◎  Relative Vacuum: -23kPa
◎  Media Temperature: 0 ~ 50℃

Feature
◎  Brushless motor, low electromagnetic interference.
◎  Oil-free pump, no pollution transmission.
◎  Maintenance-free and corrosion-resistant.

Application
◎  Medical Equipment;
◎  Environmental Detection;
◎  Experimental Equipment;
◎  Food Chemical Industry;
